Understanding UX Wireframes: A Complete Guide to Creating One

Every great digital product starts with a blank box and an arrow. That's the UX wireframe, and it's arguably the most underrated tool in a product team's arsenal.

Before your developers write a single line of code, before your UI designer picks a colour palette, before any stakeholder meeting turns into a debate about button styles, a UX wireframe gives your entire team a shared picture of how the product will work. It's the blueprint before the build.

In this guide, we'll cover exactly what a UX wireframe is, why it matters, the three levels of fidelity, and how it differs from a prototype or mockup. We'll also provide a practical, step-by-step process for creating one, regardless of your team size or stage.

What Is a UX Wireframe?

A UX wireframe is a low-to-mid fidelity visual blueprint of a digital interface. It maps out the structure, layout, and key functionality of a screen without colour, typography, or visual styling. Think of it as the skeleton of your product, before the design gets its skin.

According to Figma's UX resource library, wireframes are basic blueprints that help teams align on requirements, keeping UX design conversations focused and constructive. They show the bare-bones layout of key pages, components, and features, including navigation, content placement, and user flow.

A wireframe is not about how the product looks. It's about how it works. Once you know how it works, making it look good becomes far easier.

Wireframes are created during the early stages of the design process, after user research and before visual design begins. They're used by UX designers, product managers, developers, and stakeholders alike to agree on what's being built before anyone invests time in the details.

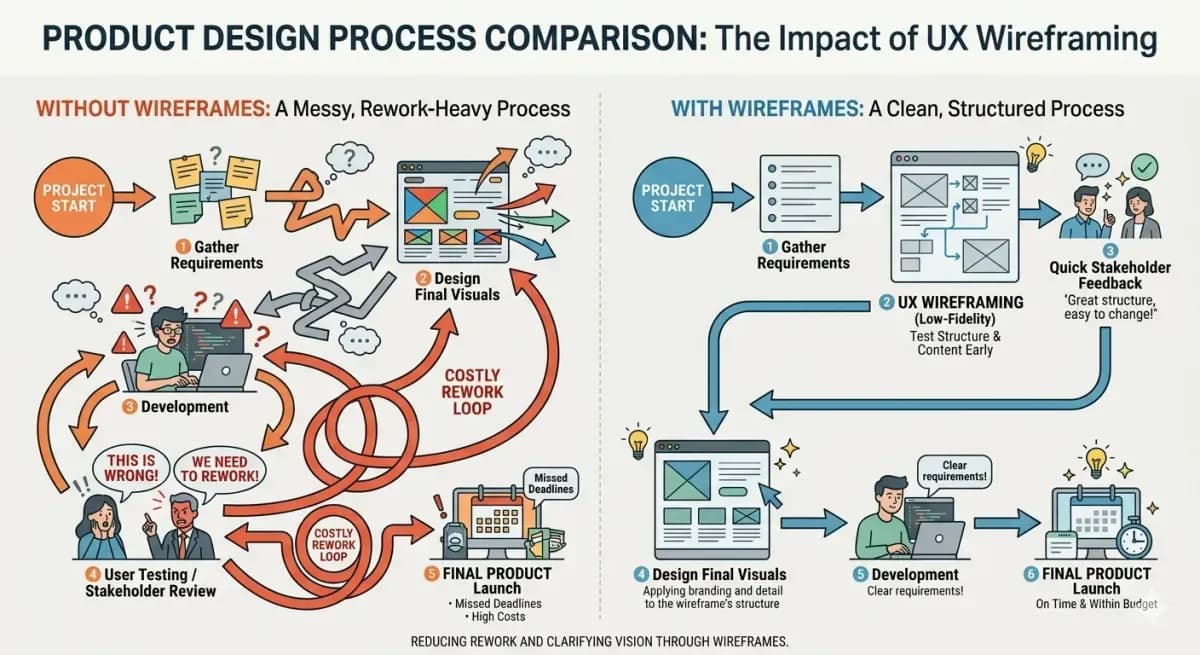

Why UX Wireframes Matter

Teams that skip wireframing tend to discover their biggest design problems after the product is built - when fixing them is expensive. Here's why wireframing is one of the highest-leverage steps in the design process:

They clarify structure before a single line of code is written

Wireframes force designers and product managers to answer the hard questions early: What goes on this screen? What does the user do first? Where does navigation live? Resolving these in a wireframe takes hours. Resolving them after development takes weeks.

They dramatically reduce rework and development cost

Wireframing has been shown to reduce overall design time by up to 50% Source by catching usability issues before they become code. A layout change in a wireframe takes minutes; the same change after visual design and development can take days. For B2B product teams with tight sprint cycles, this is a significant advantage.

They create alignment across design, product, and engineering

When everyone on the team, designers, developers, product managers, stakeholders, is looking at the same wireframe, they're looking at the same product. Wireframes replace lengthy written specs with a shared visual language that's much harder to misinterpret.

They enable usability testing before visual design begins

You can test a low-fidelity wireframe with real users before spending any time on UI design. This reveals navigation problems, confusing flows, and missing features at the cheapest possible point in the process - when they're still easy to fix. This approach feeds directly into the user journey mapping process, where validated wireframes confirm that each stage of the journey is properly supported.

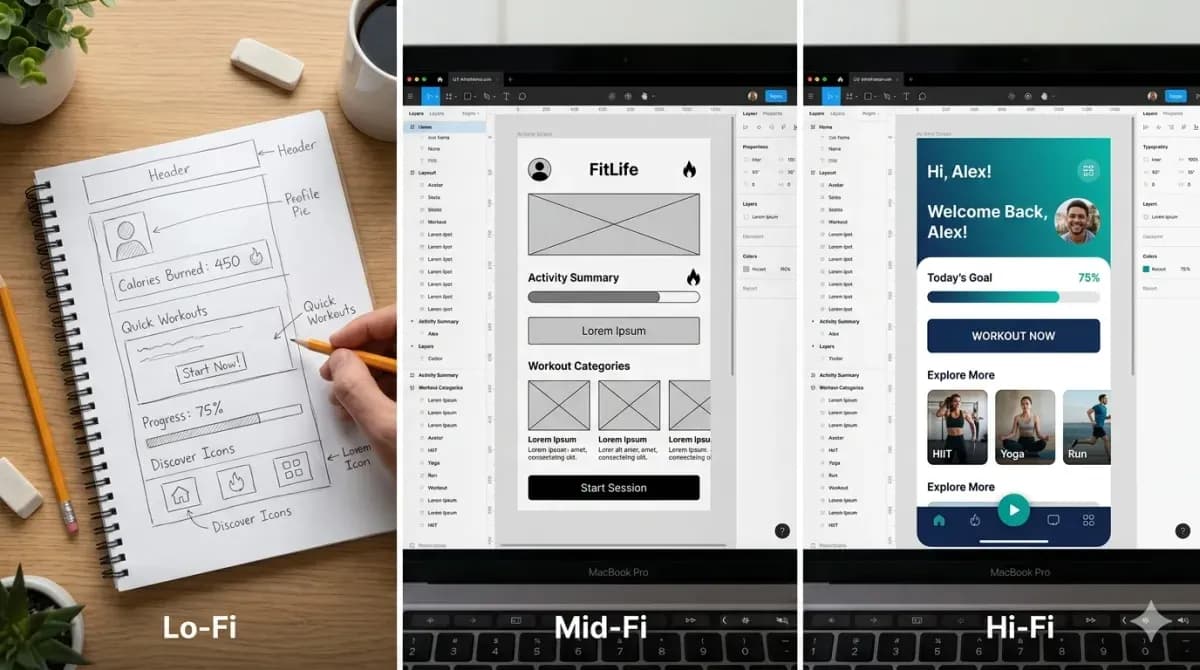

The 3 Levels of UX Wireframe Fidelity

Not all wireframes are created equal. The right level of fidelity depends on where you are in the design process and what decisions need to be made. There are three main types:

Low-Fidelity (Lo-Fi) Wireframes

Lo-fi wireframes are rough, quick sketches, often hand-drawn or created with basic digital tools. They use boxes, lines, and placeholder text (Lorem Ipsum) to represent content areas and UI elements. There's no colour, no real content, no typography.

Lo-fi wireframes are ideal at the very start of a project when you're exploring different layout concepts and need to test multiple ideas quickly. Their simplicity is the point; it keeps conversations focused on structure, not style.

• Speed: Can be created in minutes, even on paper
• Best for: Early ideation, stakeholder alignment, initial user testing
• Tools: Pen and paper, Balsamiq, FigJam, whiteboards

Mid-Fidelity (Mid-Fi) Wireframes

Mid-fi wireframes add more detail: spacing, typography hierarchy, actual UI element labels, and basic annotations. They still avoid colour and final visuals, but they're specific enough to test user flows and content hierarchy more accurately.

This is the most commonly used wireframe type in professional design workflows. Mid-fi wireframes are detailed enough to get meaningful feedback from users and stakeholders without the overhead of full visual design.

• Detail level: Spacing, hierarchy, labels, no colour or imagery
• Best for: User testing, stakeholder reviews, developer handoff discussions
• Tools: Figma, Miro, Sketch

High-Fidelity (Hi-Fi) Wireframes

Hi-fi wireframes are detailed, polished representations of the final interface, complete with typography, spacing, icons, and sometimes colour. They closely resemble the finished product, but without fully functional interactions.

Hi-fi wireframes are most valuable when you have an established design system in place. As Figma's design team notes, if the design you're exploring is similar to existing patterns in your system, jumping straight to high-fidelity can speed up the entire process without derailing stakeholder conversations.

• Detail level: Near-final visual fidelity - typography, spacing, components
• Best for: Developer handoff, client presentations, final usability testing
• Tools: Figma, Axure RP, UXPin

UX Wireframe vs Prototype vs Mockup: What's the Difference?

These three terms are frequently confused, even by experienced designers. Here's a clear breakdown of what each deliverable is, when to use it, and who uses it:

In practice, most design processes move through all three: wireframe → prototype → mockup → developer handoff. Each serves a distinct purpose and answers a different question. Wireframes answer 'what goes here?', prototypes answer 'does this flow work?', and mockups answer 'does this look right?'

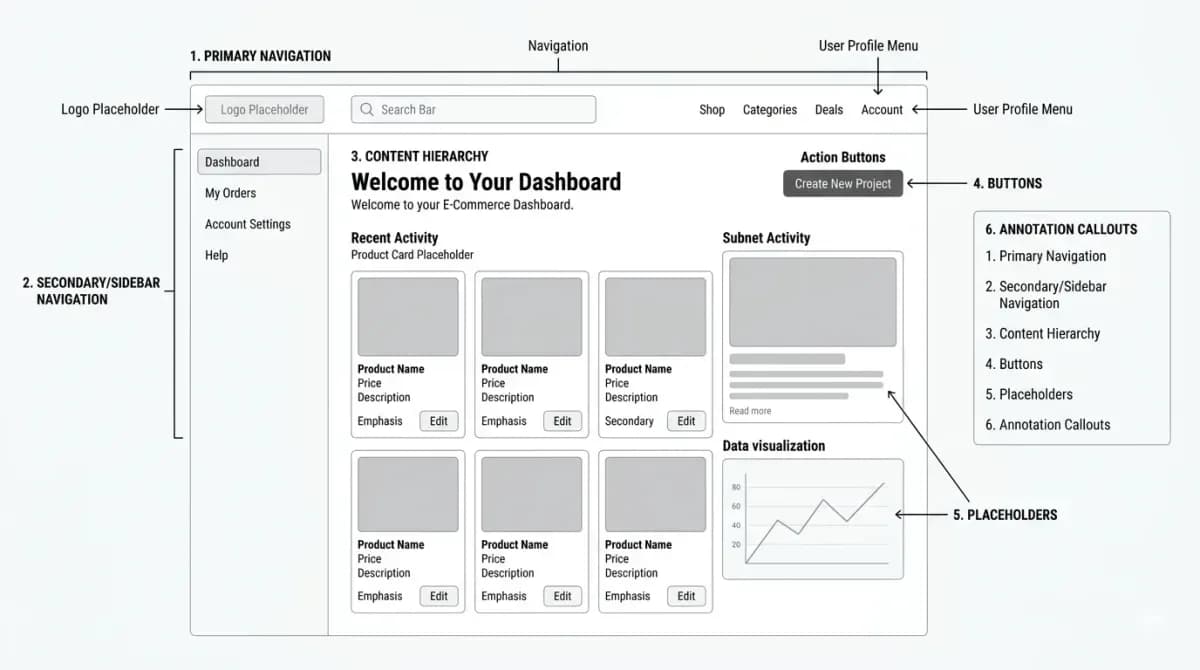

Key Elements of a UX Wireframe

A well-constructed wireframe includes the following core elements. Each one serves a specific communication purpose:

• Navigation structure: Headers, menus, sidebars, and tab bars - showing how users move between screens
• Content hierarchy: Headings, subheadings, and body text placeholders arranged to guide the user's eye through the page
• Functional elements: Buttons, input fields, dropdowns, toggles, checkboxes - every interactive component labelled clearly
• Image and media placeholders: Boxes with an X through them indicating where visuals will go, without specifying actual images
• Annotations: Notes explaining design decisions, interactions, or content rules. Essential for developer handoff
• User flows: Arrows connecting screens to show the path a user takes to complete a task

A good rule of thumb: if someone unfamiliar with the project can look at your wireframe and understand what the page does, it's doing its job. This connects to card sorting principles in UX, where information hierarchy is validated with users before it's locked into wireframes.

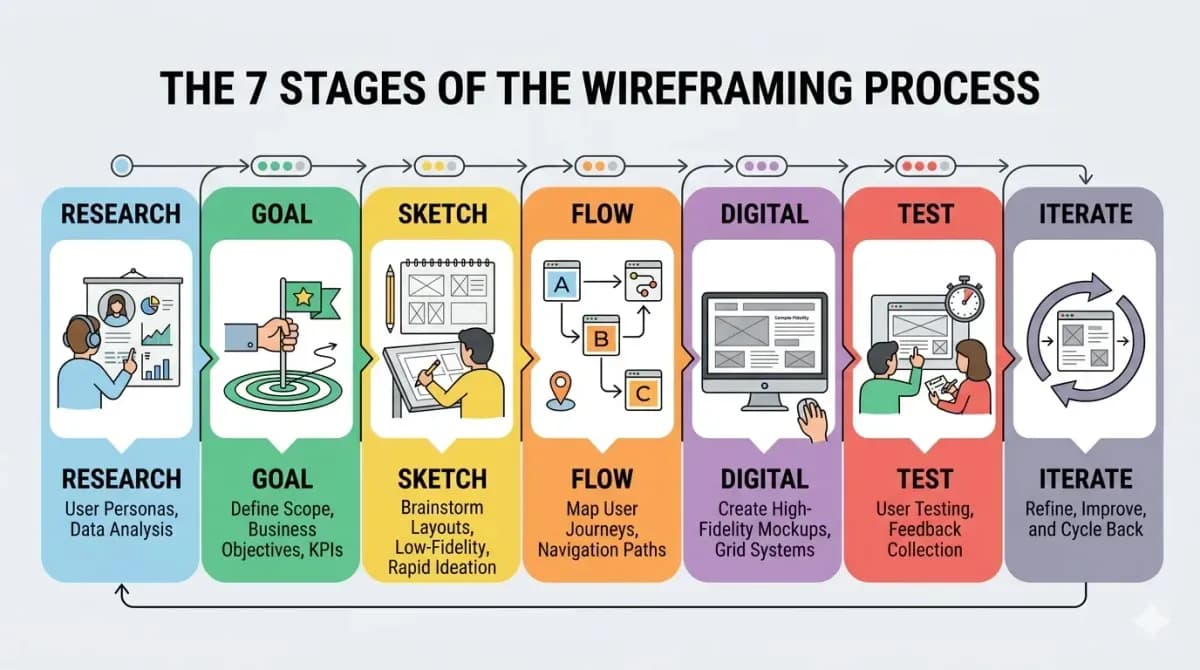

How to Create a UX Wireframe: Step-by-Step

Here's a practical process that works for teams of any size, from solo founders to enterprise product teams.

Step 1: Start with user research

Never open Figma before you understand the user. Review your user journey map, interview notes, and analytics data. Identify the specific task or flow you're wireframing. A wireframe for 'the checkout flow' is very different from a wireframe for 'the first-time onboarding experience' - know which one you're solving for.

Step 2: Define the user goal and key screens

Write one sentence: "The user needs to [do X] and feel [Y] at the end." Then list the screens required to support that goal. For a SaaS dashboard, this might be: login screen, onboarding checklist, main dashboard, first report creation, and success state.

Step 3: Sketch low-fidelity ideas first

Start on paper or a whiteboard. Sketch 3-4 different layout concepts for each key screen. The goal at this stage is quantity over quality to generate options before committing. Five minutes of sketching can save five hours of Figma work.

Step 4: Map your user flow

Connect your screens with arrows to show the path a user takes. Use a wireflow - a combination of wireframes and flowcharts, to visualise how screens connect. This is especially important for multi-step flows like onboarding, checkout, or form submission.

Step 5: Build mid-fidelity wireframes digitally

Take your best sketch concept into your wireframing tool (Figma is the industry standard). Build out each screen at mid-fidelity: real labels, accurate spacing, properly sized UI elements, and clear hierarchy. Add annotations to explain interactions and content rules.

Step 6: Run usability testing on your wireframes

You don't need a working prototype to test. Share your wireframes with 5 real users and ask them to walk through a task out loud. Listen for confusion, hesitation, and wrong turns. This is where most usability problems are discovered and where you want to find them.

Step 7: Iterate and hand off

Incorporate test feedback, get stakeholder sign-off, and prepare for developer handoff. Add any final annotations, document interaction states (hover, error, empty, loading), and make sure every screen is connected in your wireflow. Once approved, this wireframe becomes the source of truth for the design phase.

Already have ideas, but not sure how to structure them into wireframes? Anarish runs structured UX discovery sprints that go from research to validated wireframes in 2 weeks. → Book a discovery call at anarish

UX Wireframe Best Practices

The difference between a wireframe that drives good decisions and one that creates confusion comes down to how it's made. Follow these best practices:

• Use grayscale only: Colour triggers visual opinions and distracts from structure. Keep wireframes black, white, and grey until the visual design phase.
• Annotate everything: Designers know what they mean, developers often don't. Write a note for every non-obvious interaction, conditional state, and content rule.
• Design for the smallest screen first: Mobile-first wireframing forces you to prioritise the most important content, then scale up to desktop, not the other way around.
• Use real labels, not 'Lorem Ipsum' for key copy: Navigation items, button labels, and headings should use real words. Placeholder text obscures whether the UX writing is working.
• Don't wireframe every state in detail early: Start with the happy path (the ideal user journey), then add error states, empty states, and edge cases once the main flow is approved.
• Version your wireframes: Always save versions before major changes. What looked wrong yesterday sometimes turns out to be right after all.

Strong wireframes connect directly to strong UX writing; how you label buttons, structure menus, and name features shapes how users experience the interface. Our guide on UX writing covers this in depth.

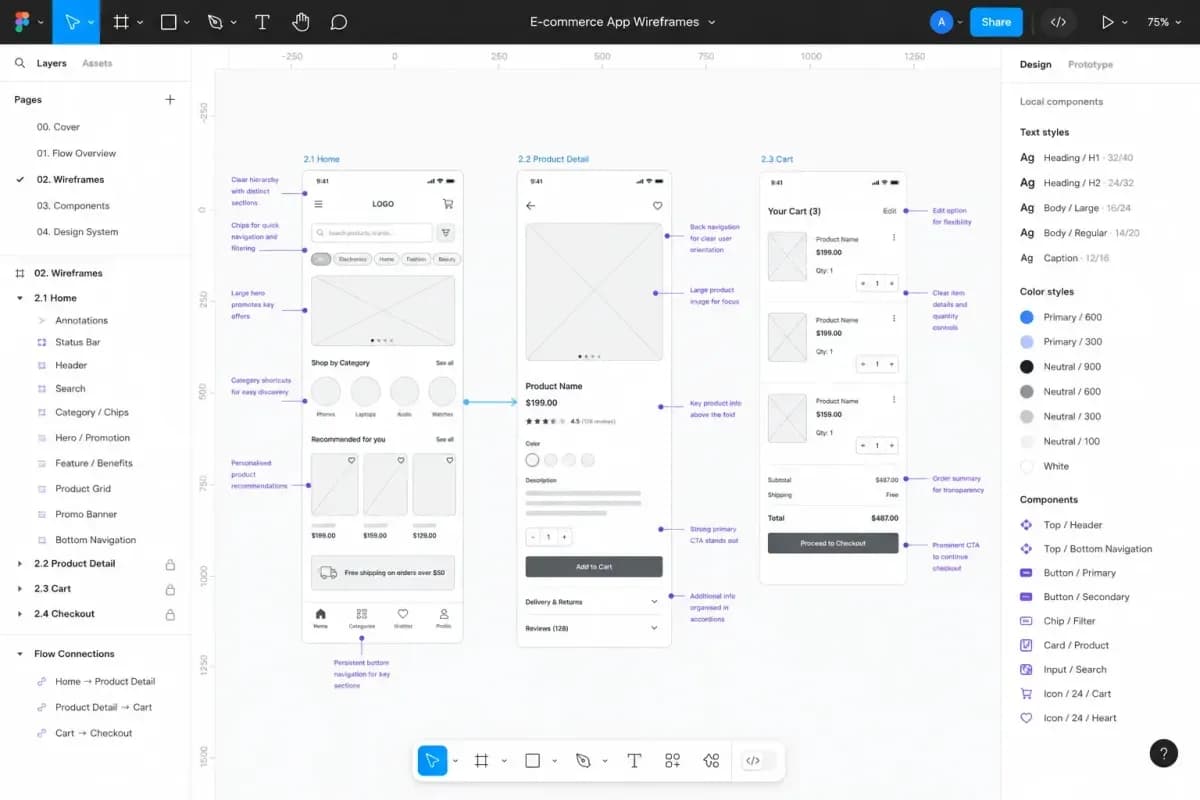

Best Tools for UX Wireframing in 2026

For most B2B product and design teams, Figma is the clear standard; it covers everything from lo-fi wireframing (via FigJam) to hi-fi prototyping within a single platform. If your team is already using Figma for design, there's no reason to use a separate wireframing tool. For workshop-based lo-fi mapping, Miro adds excellent facilitation features that Figma lacks.

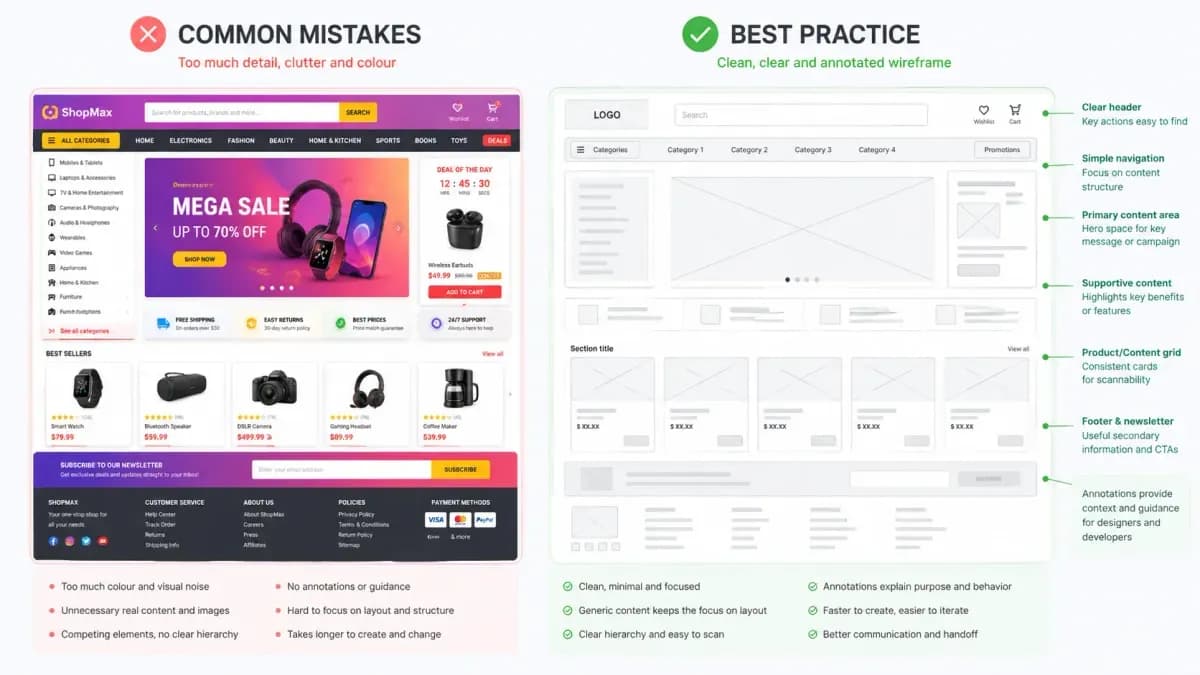

Common UX Wireframing Mistakes to Avoid

Skipping lo-fi and jumping straight to hi-fi

Going straight to high-fidelity wireframes before validating the structure is the single most common (and costly) wireframing mistake. It locks in assumptions early, makes stakeholders argue about colours instead of structure and makes it psychologically harder to change things that look 'almost finished'.

Wireframing without a clear user goal

Every wireframe should be built in service of a specific user task. If you can't write the user goal in one sentence before you start, the wireframe will be vague and hard to test or evaluate.

Not annotating interactions

A wireframe without annotations is a wireframe that will be misinterpreted by developers. Every dropdown, modal, tooltip, hover state and conditional display should be documented. What's obvious to the designer is almost never obvious to the engineer.

Designing for yourself, not the user

Wireframes are often built based on what the design team thinks makes sense. Without user testing, you have no way to know if users agree. Even a single round of usability testing on a lo-fi wireframe catches more problems than the entire team combined would ever spot internally.

Treating the wireframe as a final deliverable

A wireframe is a communication tool, not a finished design. The moment a team starts treating wireframes as untouchable, the design process stops working. Stay open to changing even approved wireframes if user testing reveals a problem.

Final Thoughts

A UX wireframe isn't glamorous. It doesn't look like much. However, it's the single most effective tool for aligning a team, identifying problems early and delivering a product that actually makes sense to users.

The best products we've seen built, from early-stage SaaS tools to mature B2B platforms, share one thing in common: the team was disciplined about wireframing before designing. They asked the hard structural questions before anyone opened a colour picker. And it showed in the final product.

Whether you're starting from scratch or redesigning a legacy product, the process is the same: understand the user, define the goal, sketch fast, validate early and iterate relentlessly. Wireframing is how you make that process visible, shareable and actionable.

Ready to get your product's UX right from the start? Anarish builds UX wireframes, user flows and prototypes for B2B product teams, from discovery to developer handoff. Explore our work at portfolio or get in touch at at anarish
